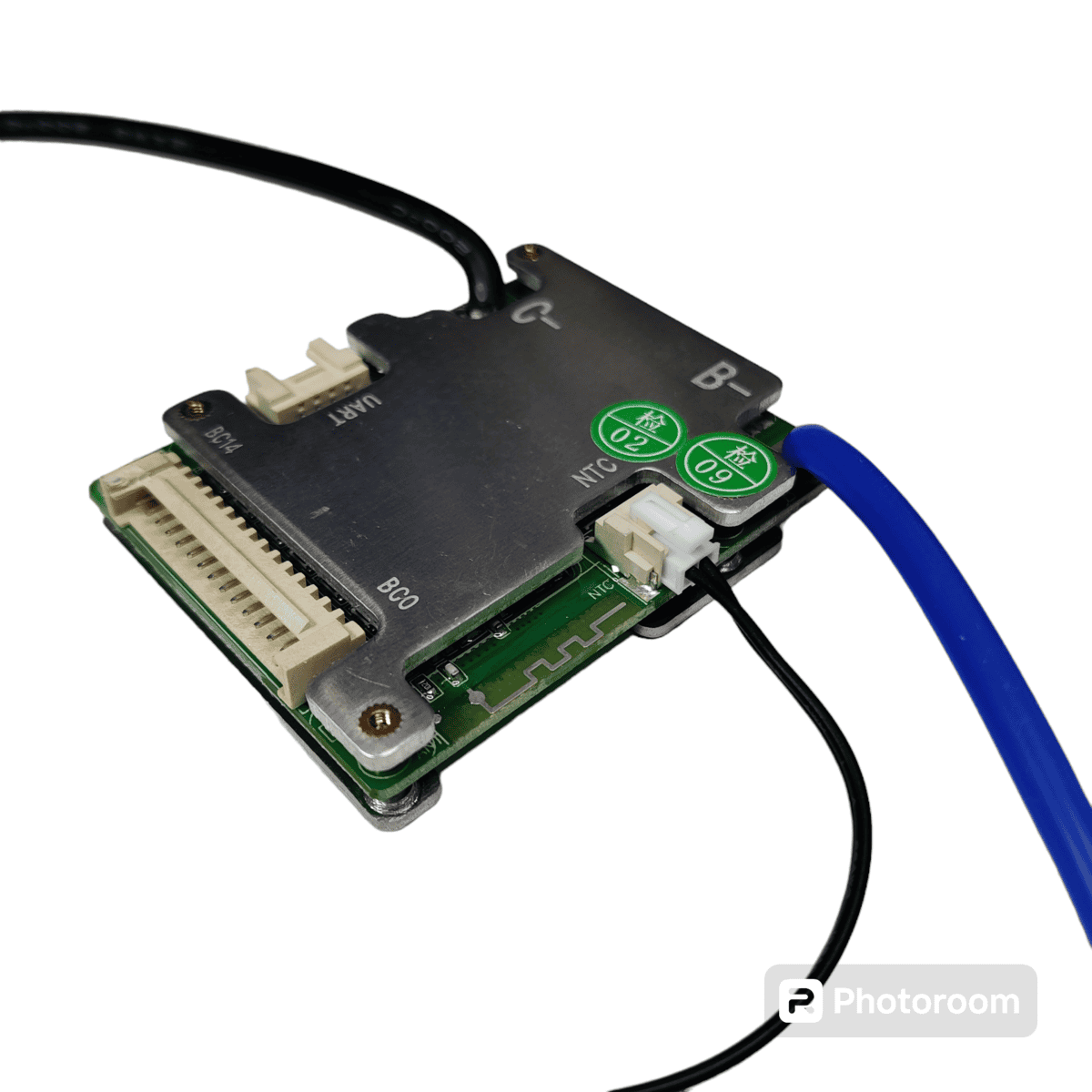

Description
Applicable Battery Type: 3.6v Li-ion
Support Number Of Strings:automatically identify 7-14S.
Size:63*52*12mm.
Continuous current 20A, burst current 60A.
Balance Model:Static/Charge balance.
Balance Current:20-55mA.
Temperature Sensor:1pc Internal,1pc External.
Overcharge protection
Over-discharge protection
Overcurrent protection
Built-in Bluetooth
Short circuit protection
Temperature protection
Balance function
Size : 63*52*12mm
Starting from BC0 wiring, the first wire BC0 connected to the battery total negative -, the second wire BC1 connected to the first series of positive +, the third wire BC2 connected to the second series of positive +, and so on.
For 7S battery pack as sample, connect BC7-BC14 to battery cell 7# battery positive +.
For 10S battery pack as sample, connect BC10-BC14 to battery cell 10# battery positive +.
